3.1 Mounting to Machinery

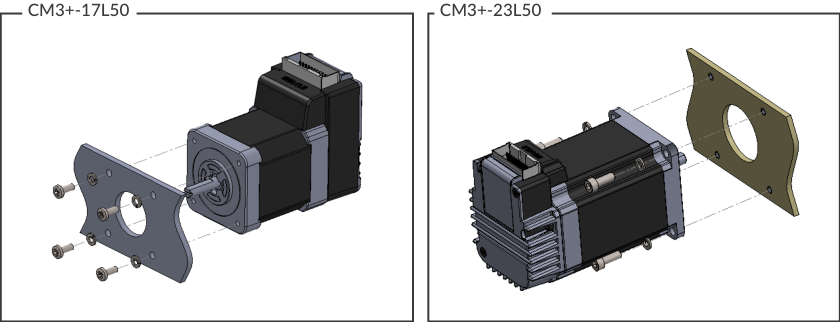

CM3+ can be mounted either horizontally or vertically. Mount CM3+ on the smooth and rigid surface of a metal plate. When installing CM3+, insert the rabbet located on the motor's installation surface into the mounting plate's counterbore or through holes, then screw it with four bolts through the four mounting holes on CM3+'s installing surface, leaving no gaps between the surface and metal plate. (Tolerance of rabbet is in Chapter 13 Specifications.)
The sizes of mounting bolts are as follows:
|
Model |
Bolt |
Depth |
|---|---|---|
|
CM3+-17S50 / CM3+-17L50 |
M3 |
5.0 mm |
|
CM3+-23S50 / CM3+-23L50 |
M4 |
- |
3.2 Load Installation
Attach the coupling to the output shaft and adjust so that the load shaft and output shaft are centered. Flexible coupling with torsional rigidity is recommended. Design the machinery and align the assembly to ensure that radial load and thrust load on the output shaft do not exceed the allowable values. (Allowable radial load and thrust load of each CM3+ motor size are stated in Chapter 13 Specifications.)
-
Radial Load (Fr): perpendicular force applied to the shaft end.
-
Thrust Load (Ft): parallel force applied to the shaft end.
Mounting a load directly to the output shaft would increase the force and damage the motor. Consider reviewing the mechanical system so that excessive load is not applied to the output shaft.

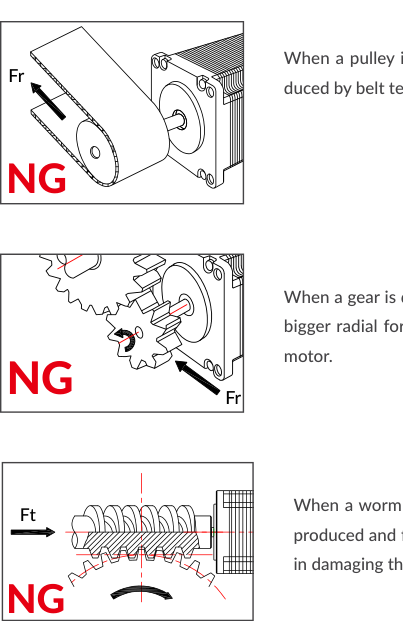

Examples of load installations to avoid:
-
When a pulley is directly mounted onto the output shaft, radial force (Fr) will be produced by belt tension and may result in damaged bearings in the motor.
-
When a gear is directly mounted onto the output shaft, the smaller the dimensions of the gear, the bigger the radial force (Fr) produced, which may result in damaged bearings in the motor.
-
When a worm gear is directly mounted onto the output shaft, thrust load will be produced and forced onto the motor shaft. The output shaft will be moved, and it may result in damage to the inside of the motor.
