MYO35 - TCP/IP - 6 axis daisy chain with IO

Description

The MYO35 is a 6-Axis hub that daisy-chains up to 6 motors. Communication to the first motor is through a TCP/IP connection.

  • Power is supplied in pairs to the motors with the power to M1 and M2 also powering the ethernet module

  • Digital inputs IN3 and IN4 can be configured as sinking or sourcing and are 24V tolerant. Input is asserted on a 5V differential between IN+ and IN-

  • DIN rail feet are included for simple mounting

  • The PCB is exposed an should be mounted in a control box.

  • Standard CM1SRL1 cables connect to the motors.

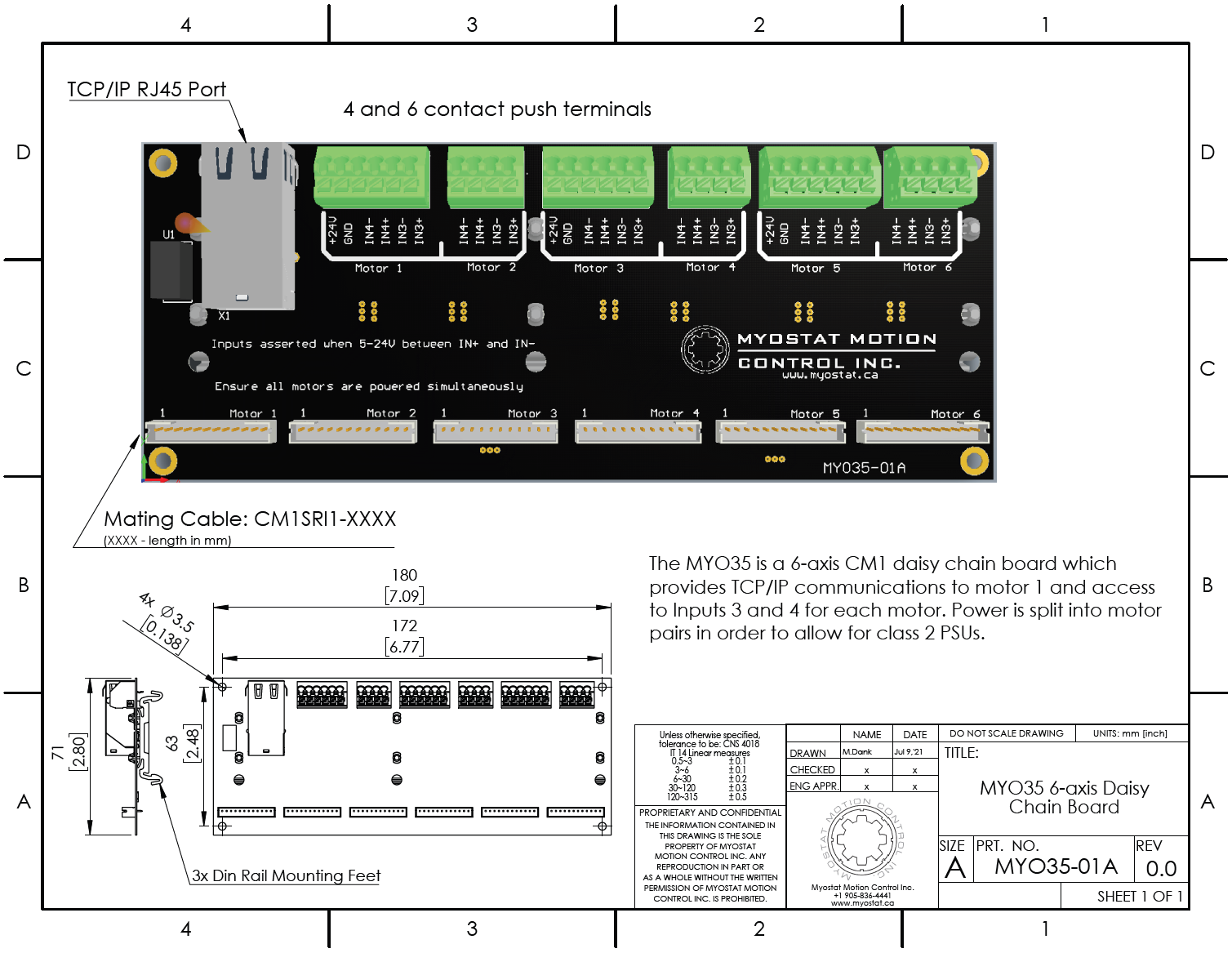

Datasheet


MYO35-01A.PDF

Ordering Information

Part Number

Description

MYO35-01

6-Axis TCP/IP communication hub

CM1SRL1-xxxxW

Interconnect cable to CM1 motor. See CM1SRL1 for additional information.

xxxx - defines cable length in mm

Example

  • 2m cable → CM1SRL1-2000W

  • 50cm cable → CM1SRL1-500W
