MYO43 - TCP/IP Hub - 3 Motor with IO
Description
3-Motor I/O Breakout with Ethernet Connectivity
This 3-motor I/O breakout module provides independent control and programming of up to three CM1 motors via Ethernet. The motors are not daisy chained; each motor is individually addressed and selected through dedicated Ethernet ports. Only one motor can be accessed and programmed at a time, determined by the active port connection.
Port Configuration:
Port 10001 – Default port (active if no other port is open)
Port 10002
Port 10003
Only one port can be open at any given time, ensuring single-motor selection for configuration and communication.
Key Features:
Integrated Ethernet communication module
Support for sourcing and sinking digital inputs
Direct motor OUT2 connection
Selectable digital or analog input (IN4) via onboard switch
Screw terminals for all power and I/O connections for secure and convenient wiring
This breakout board enables streamlined Ethernet-based motor configuration while providing flexible and robust I/O connectivity in a compact, user-friendly design.

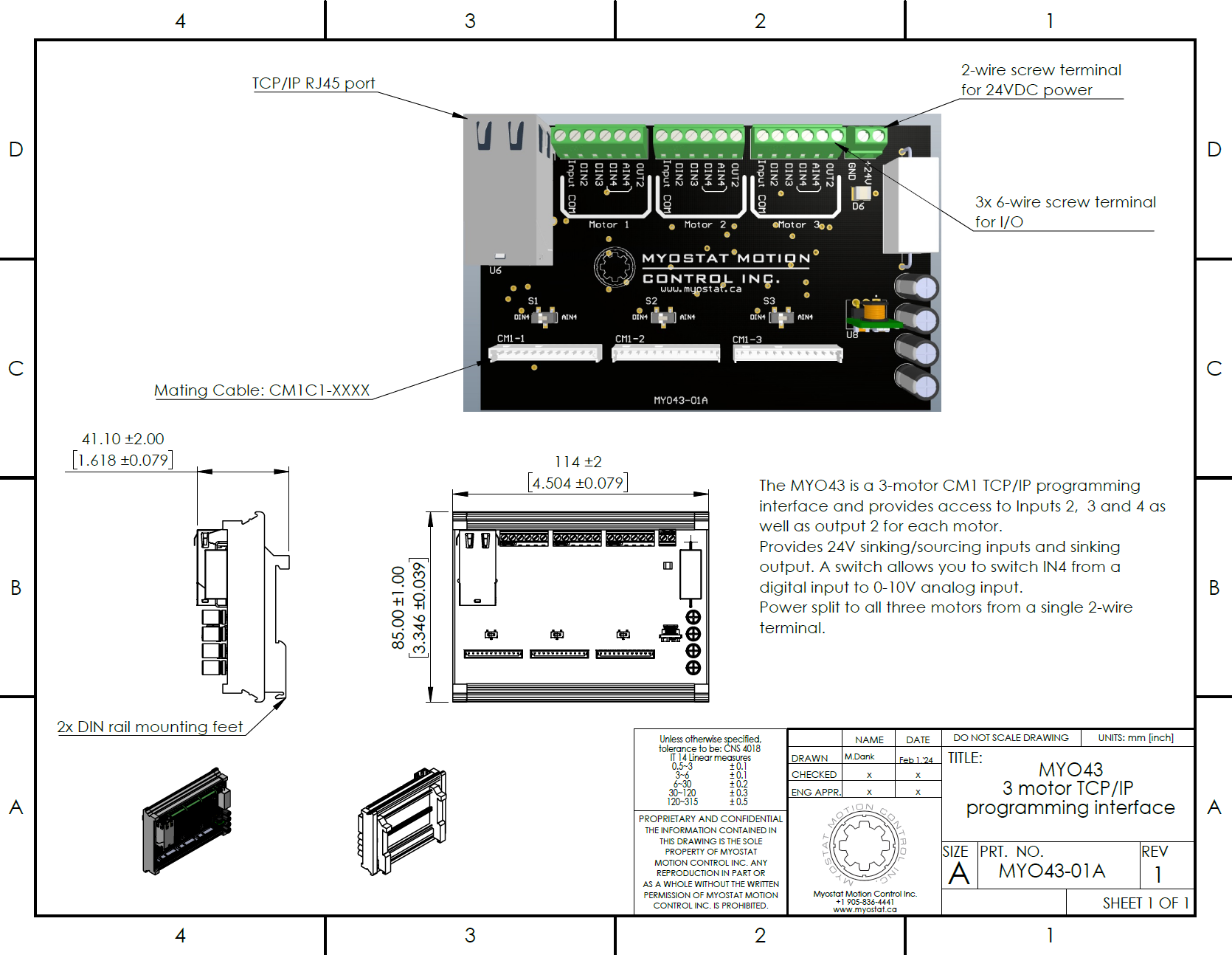

Datasheet

Ordering Information
Part Number | Description |
|---|---|
MYO43-01C | 3-Axis TCP/IP communication hub with IO |
CM1C1-xxxxW | Interconnect cable to CM1 motor. See CM1C1 for additional information. xxxx - defines cable length in mm Example
|
