MYO25 - IO Button board for MYO23

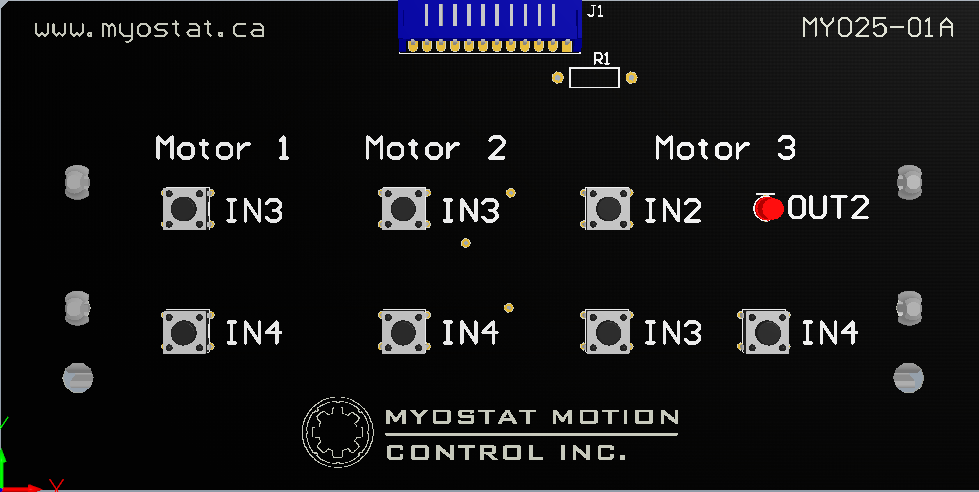

MYO25-01A
Description
The MYO25 is an optional button board for quickly testing the IO on motors connected to a MYO23. The MYO25 is for development and testing.
The MYO25C3 cable connects three motor from the MYO23 to the MYO25.
Ordering Information
Part Number | Description |
|---|---|
MYO25-01A | IO Test board for MYO23 5-Axis Hub |
MYO25C3-xxxx | Cable connecting MYO23 and MYO25. The xxxx indicates the length of the cable in mm. Example:
IN3/IN4 are TTL level signals. It is recommended to keep the length to under 5m. |

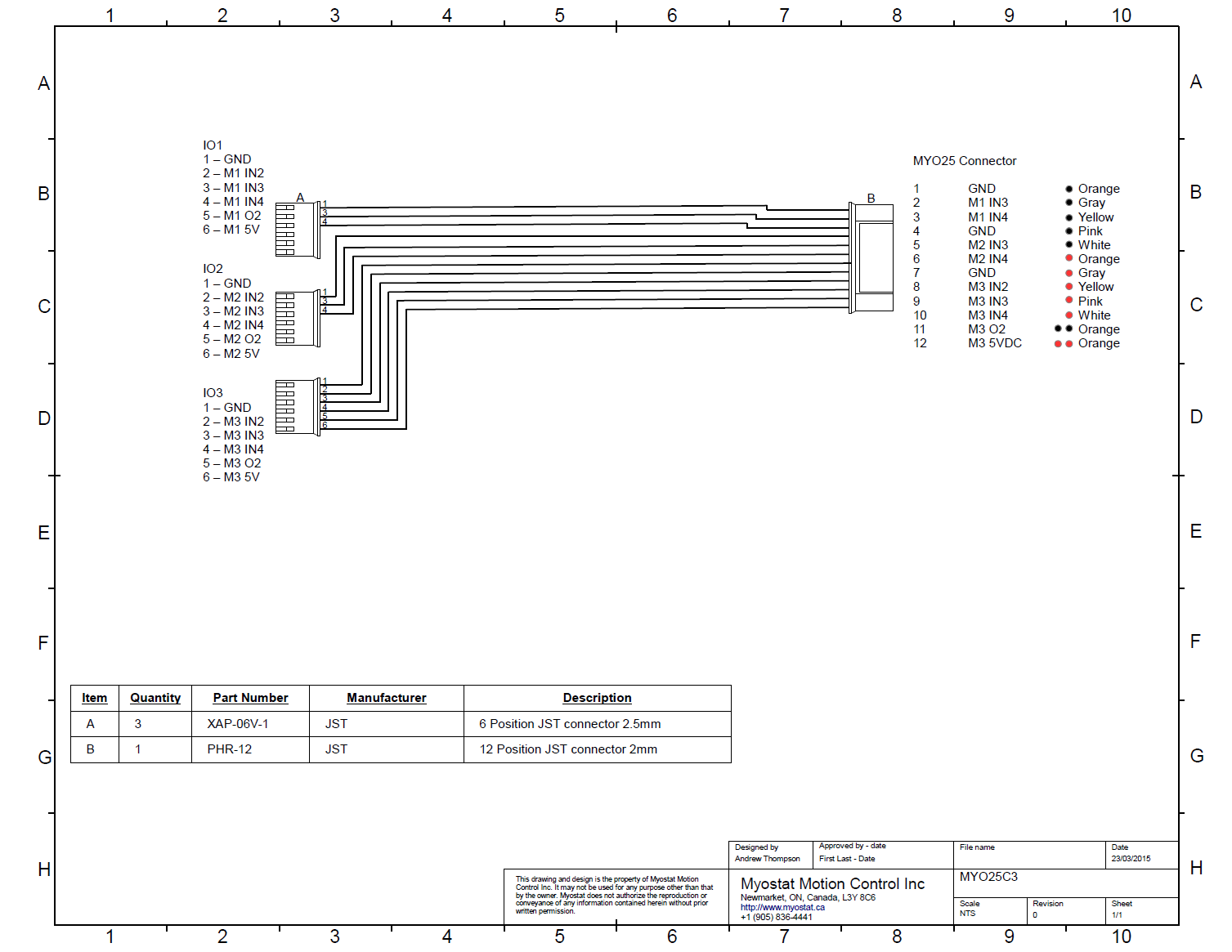

MYO25C3 Cable Diagram
