CM1PC1 - Power Conditioner and Regen Resistor
Description

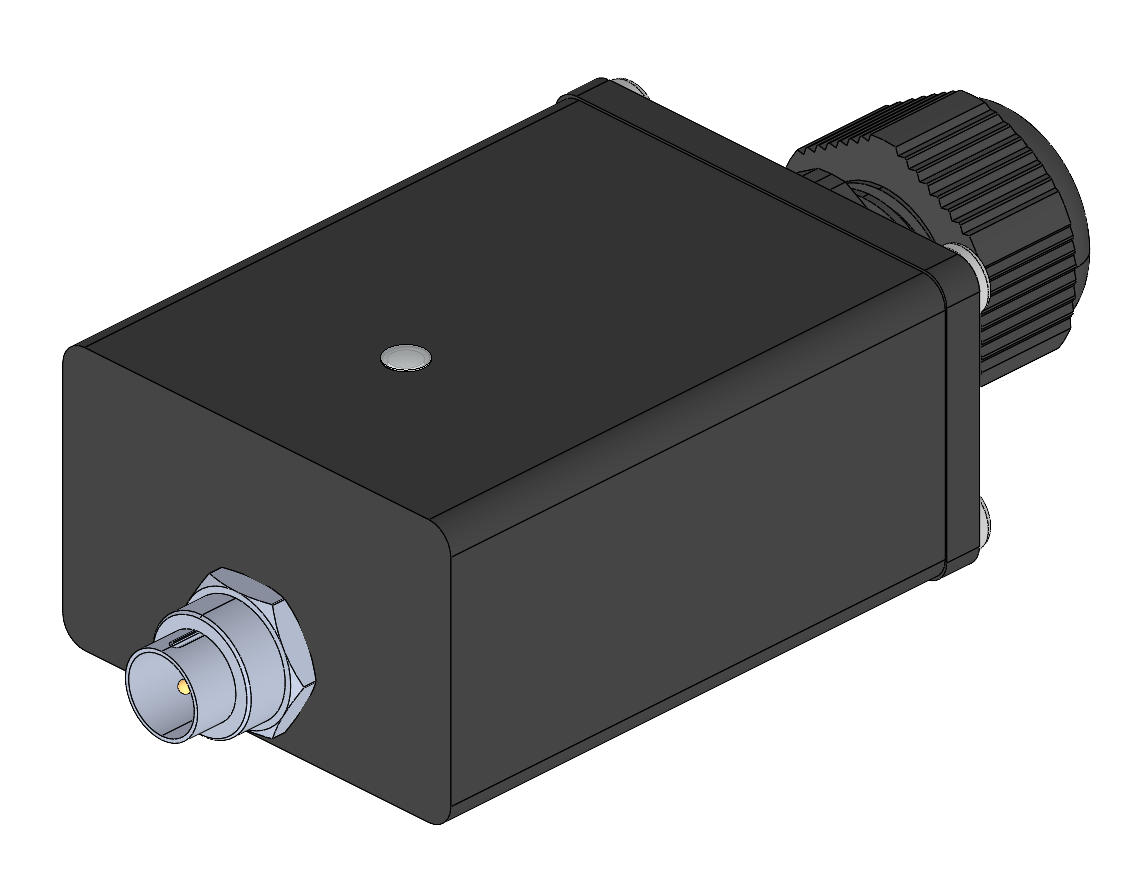

The CM1PC1 is a 24VDC (±10%) power conditioner designed to reduce regenerative voltage from a motor. It clamps overvoltage at 32VDC and dissipates excess power to maintain safe voltage levels. The module connects inline between the power cable (input) and the motor power connector (output). A green LED indicates that 24V power is present and the circuit is operating correctly.

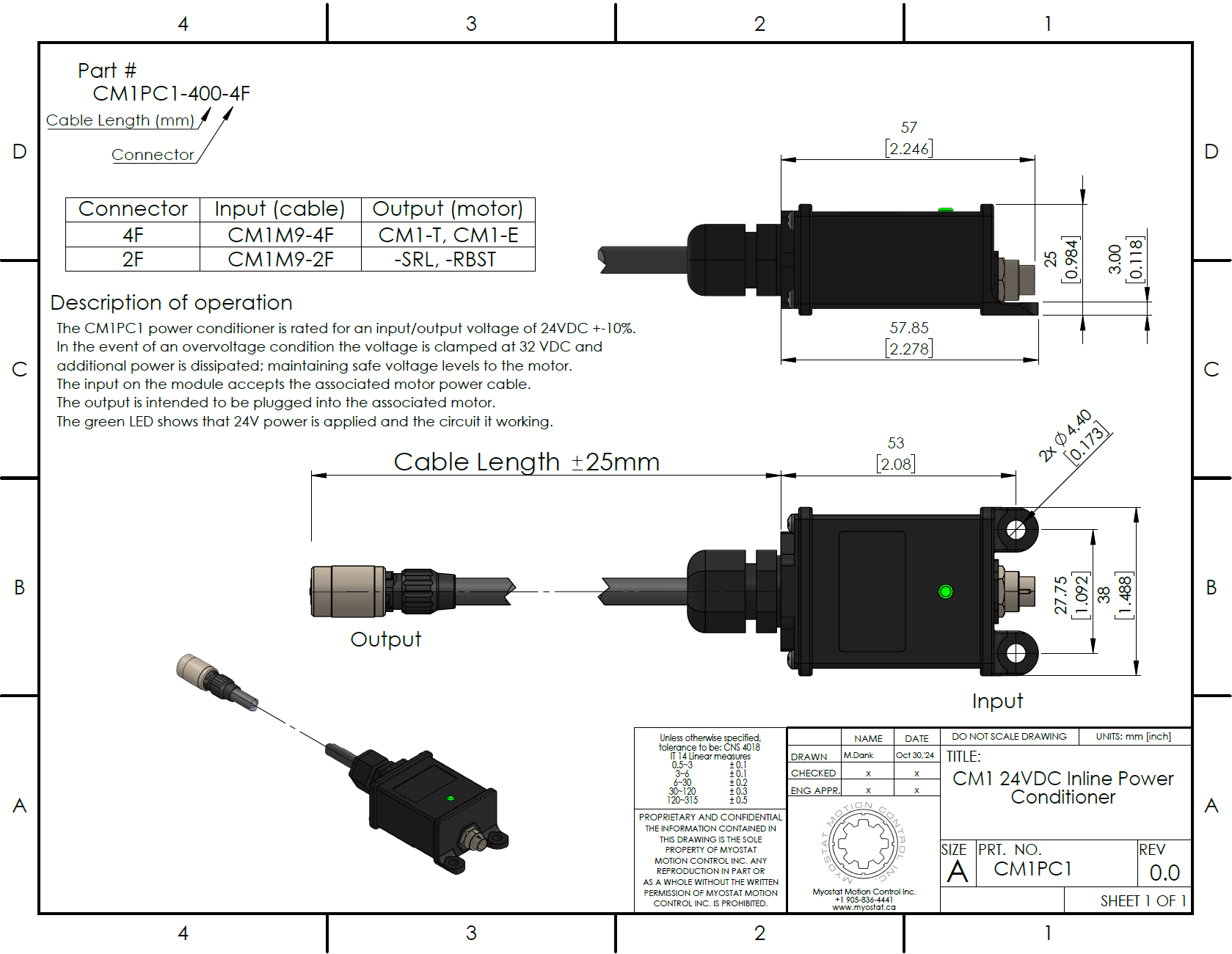

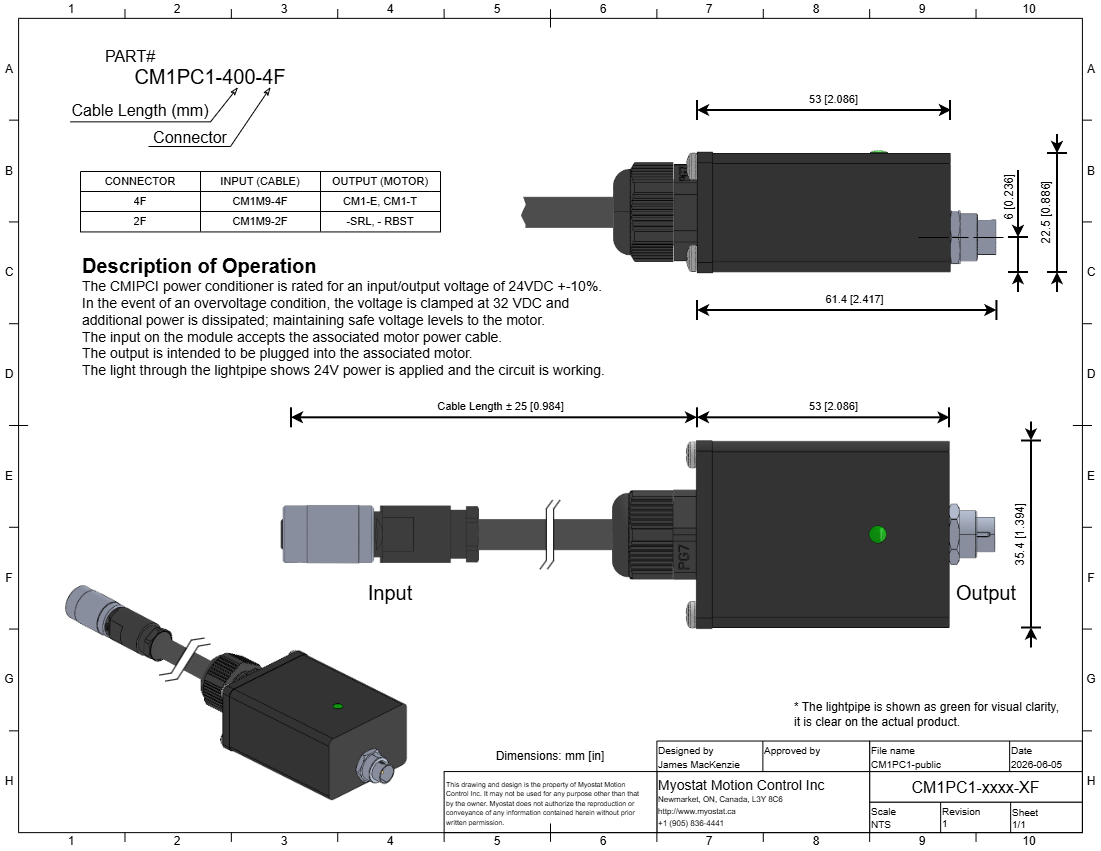

Datasheet
Ordering Information
Part Number | Description |
|---|---|
CM1PC1-xxxx-2F | Power conditioner for CM1-C SRL or RBST integrated modules |
CM1PC1-xxxx-4F | Power conditioner for CM1-T and CM1-E motors |
