CM1SRL1 - 12 Conductor Interconnect Cable
Description
The CM1SRL1 cable is used as an interconnect cable between peripheral devices and the motor. It is a 12 conductor cable with a JST 12-pin header on the peripheral side and a Molex 12-pin . The cable is similar but should not be confused with a CM1C1 which is molex to molex.

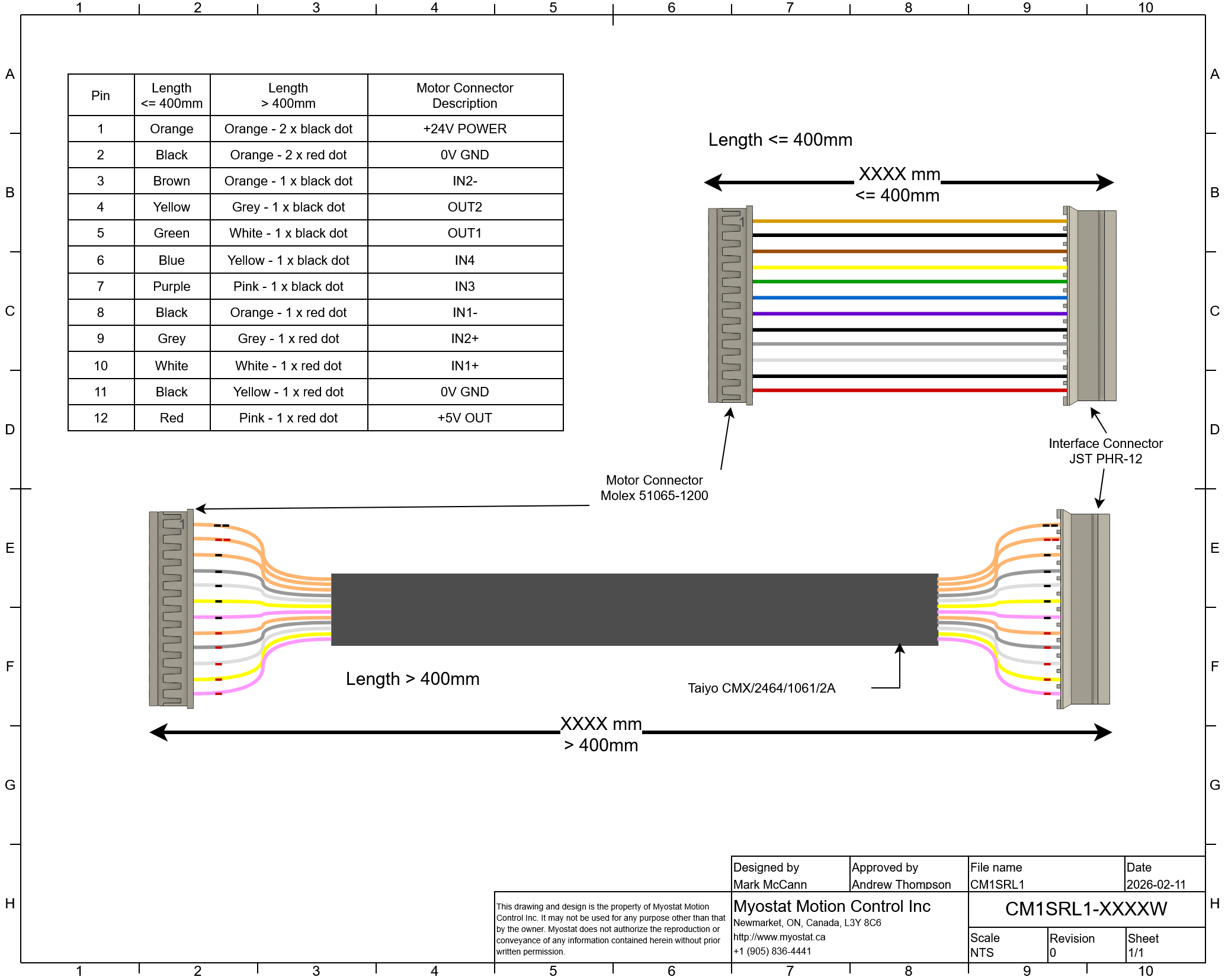

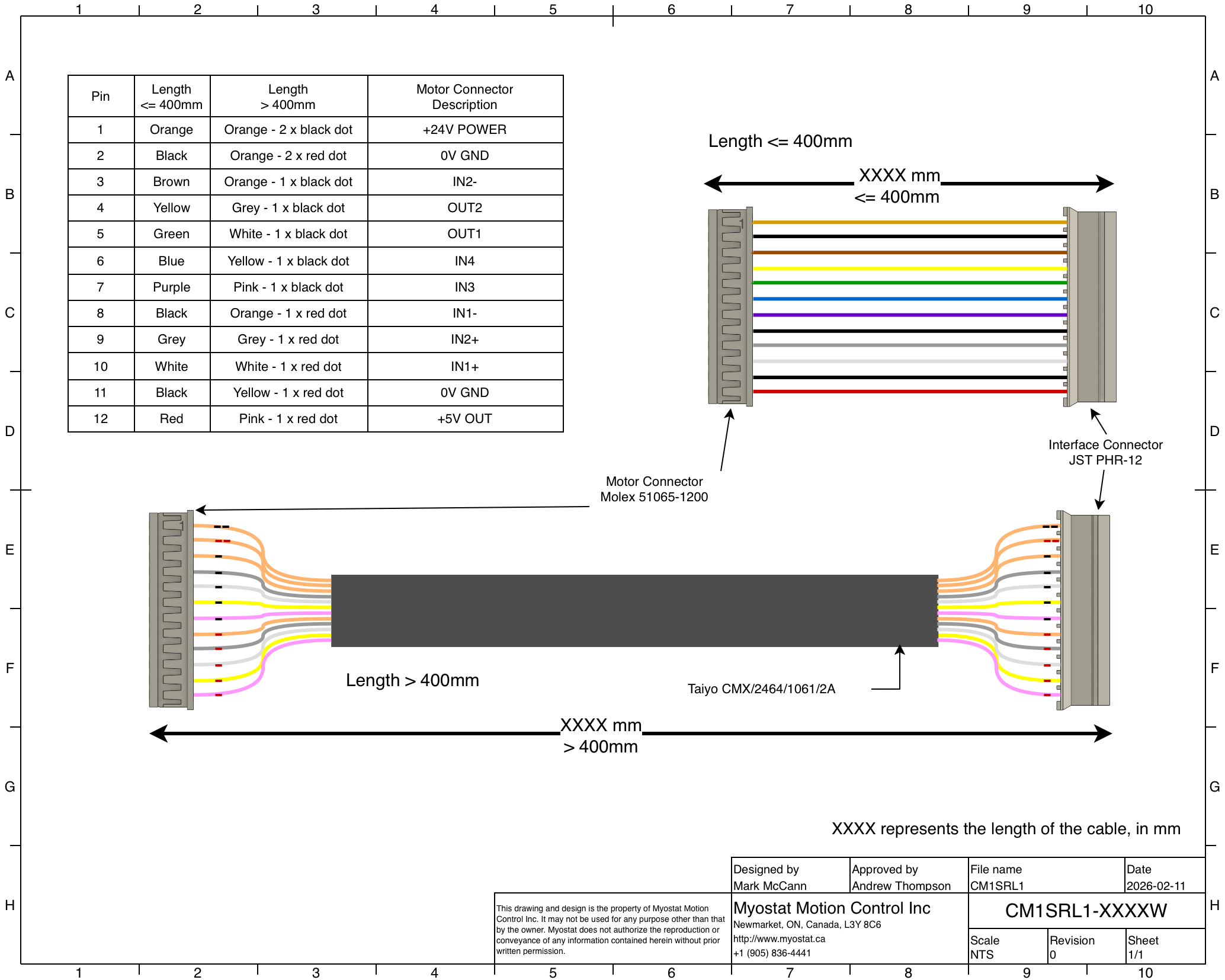

Datasheet
Ordering Information
Part Number | Description |
|---|---|
CM1SRL1-xxxxW | 12-conductor Molex to JST interconnect cable. xxxx - defines cable length in mm Example
|
