MYO23 - USB - 5-Axis daisy chain with IO


Description

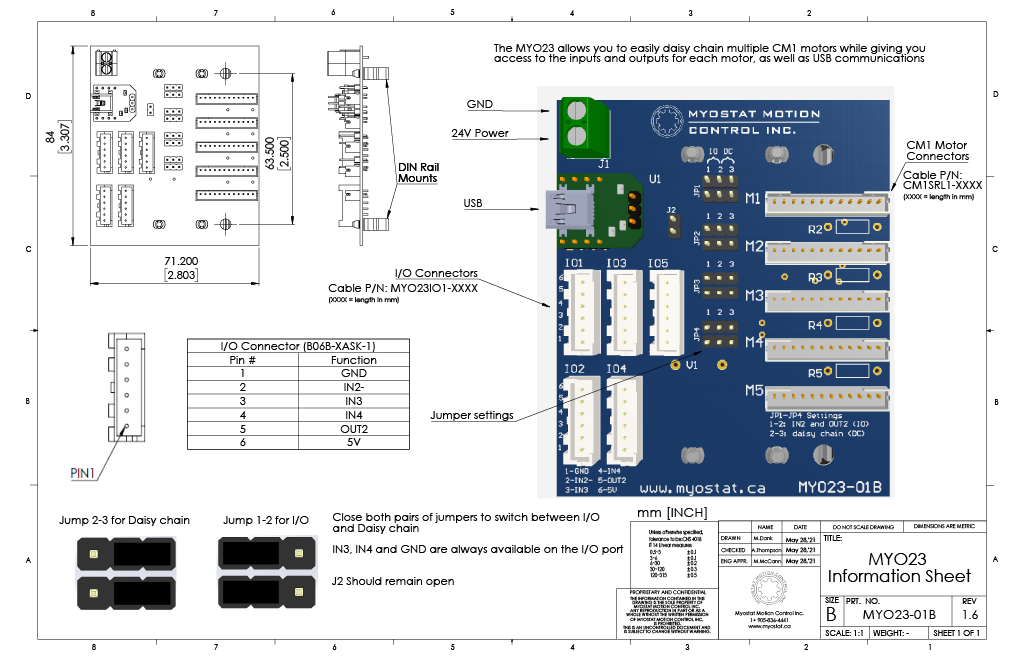

The MYO23 is a 5-Axis hub for CM1-C motors. The hub simplifies a daisy-chain connection between motor and offers a USB micro connection to motor 1. In addition each motor has an IO connector to easily wire in required digital inputs and outputs.

The board can be configured to

  1. act as a daisy-chain hub between motors or each motors IO .

  2. pass all IO to the IO connectors.

Ordering Information

Datasheets

MYO23-01B.PDF
