CM1C1 - Standard 12 conductor Motor Cable
Description
The CM1C1-400S is the basic cable supplied with the motor. This single ended cable is used to power the motor, connect to I/O and possibly communicate depending on the system.
The cable can be ordered in custom lengths with lengths over 400mm (~1ft) using Taiyo high flex cable.
The cable is also available with a connector on both ends enabling quick connection to control boards or CM1 peripheral modules.
Datasheets
Ordering Information
Part Number | Description |
|---|---|

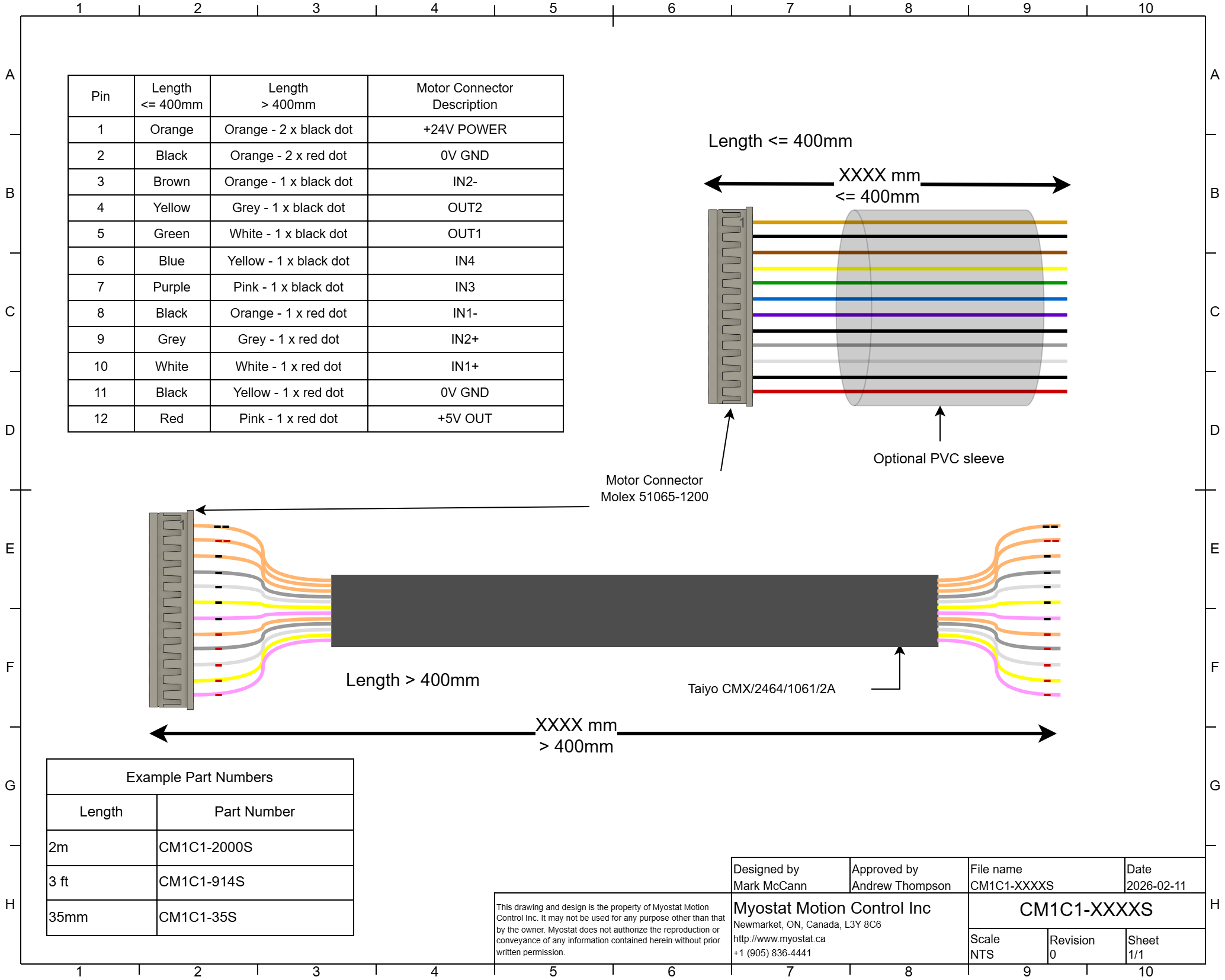

CM1C1-xxxxS | 12-conductor molex to flying lead cable xxxx - defines cable length in mm Example
|

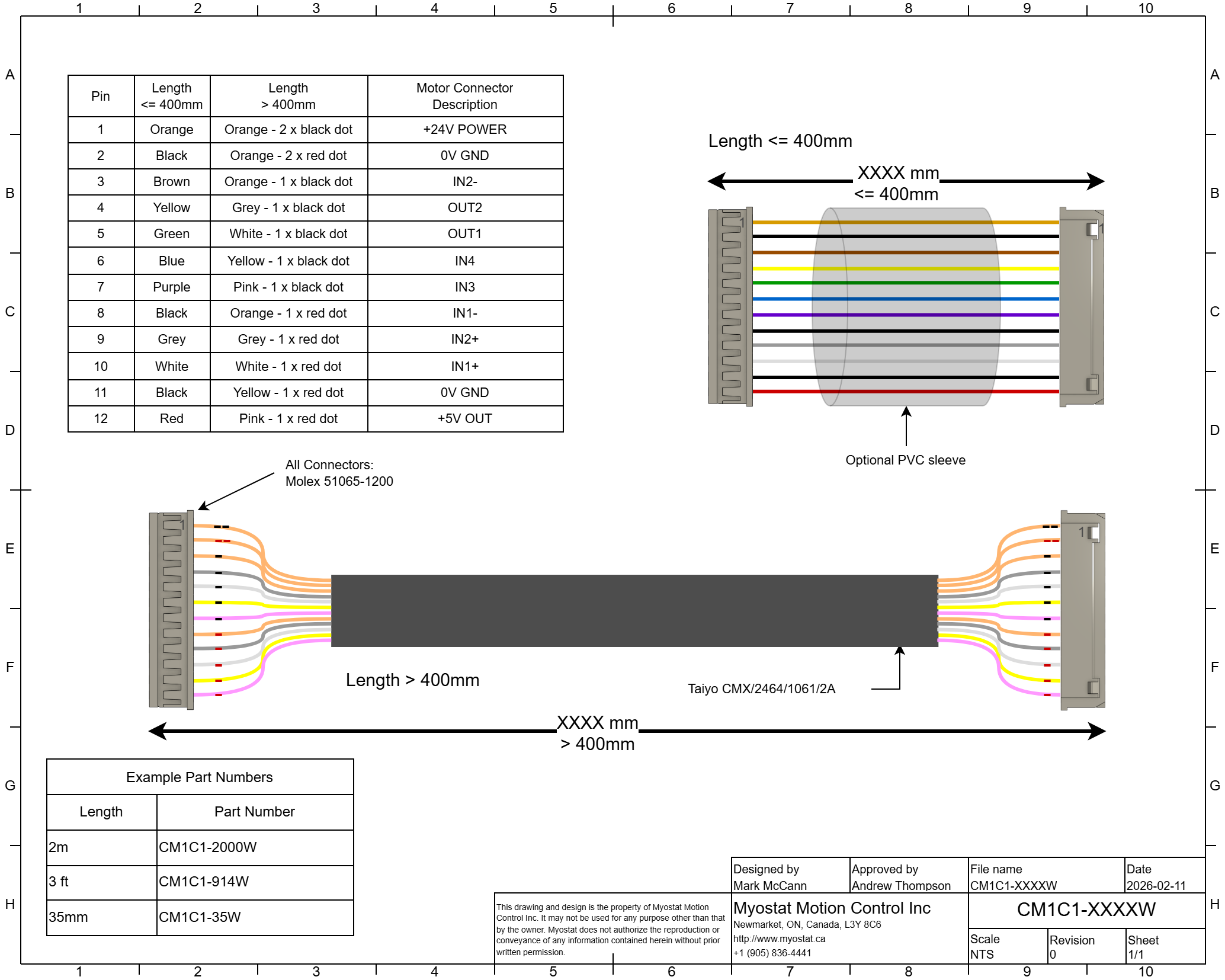

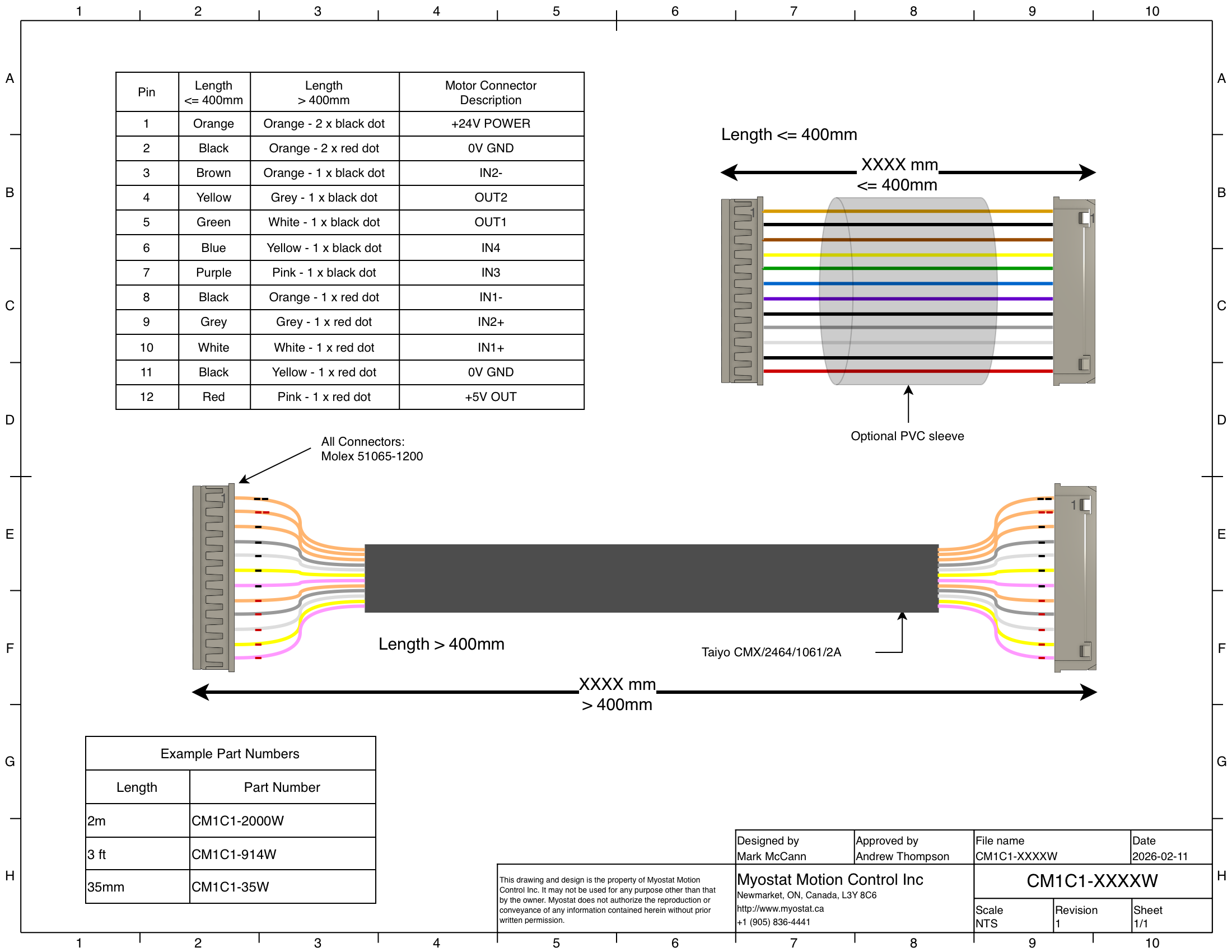

CM1C1-xxxxW | 12-conductor Molex to Molex interconnect cable. xxxx - defines cable length in mm Example
|
