CM1C3 - Power and RS232 Communication
Description

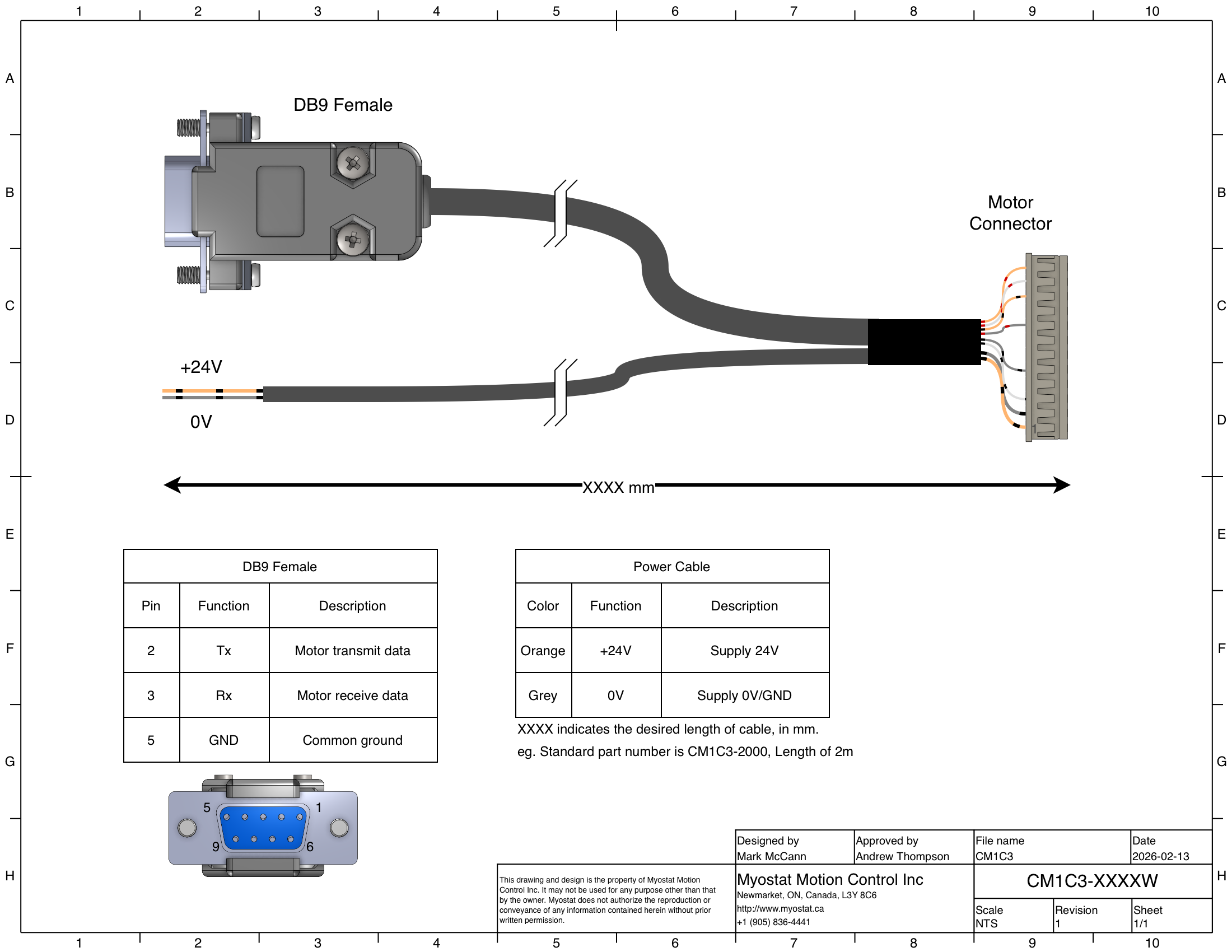

The CM1C3-2000 Y-cable is a 2m long RS232 serial communication and power cable that connects directly to a CM1-C motor. The cable can be used to program, debug and/or run a standard CM1-C.
A power cable splits off from the motor connector which is used to supply 24V to the motor.
The DB9 RS2332 communication uses standard RS232 pinouts to connect to a standard serial port.
Datasheet
Ordering Information
Part Number | Description |
|---|---|
CM1C3-2000 | Standard 2m RS232 communication and power cable for CM1-C motor |
CM1C3-XXXX | xxxx - defines cable length in mm Example
It not recommended for the cable to exceed 5m due to possible injection of noise on the serial line. |
