Motor Size |
Description1 |
|---|---|
|
17S30 |
NEMA17 short body, 0.12Nm, 3000rpm |
|
17L30 |
NEMA17 long body, 0.53Nm, 3000rpm |
|
23S30 |
NEMA23 short body, 0.42Nm, 3000rpm |
|
23L20 |
NEMA23 long body, 1.24Nm, 2000rpm |
(1) See CM1 Motor Specifications for complete list of motor specifications
|

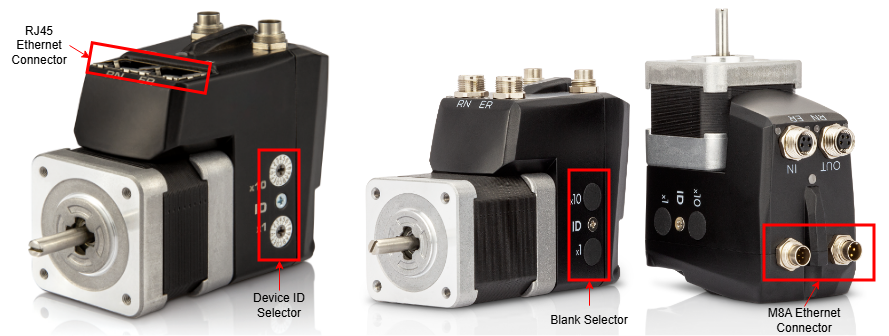

Ethernet Connector |
Description |
|---|---|
|
RJ |
RJ45 Ethernet connector |
|
8A |
M8A Ethernet connector |
|
Device ID Selector |
Description |
|---|---|
|
S |
Rotary Switch for device ID |
|
B |
No switch for device ID |
