CM1-E User Guide
CM1-E DESIGN REFERENCES

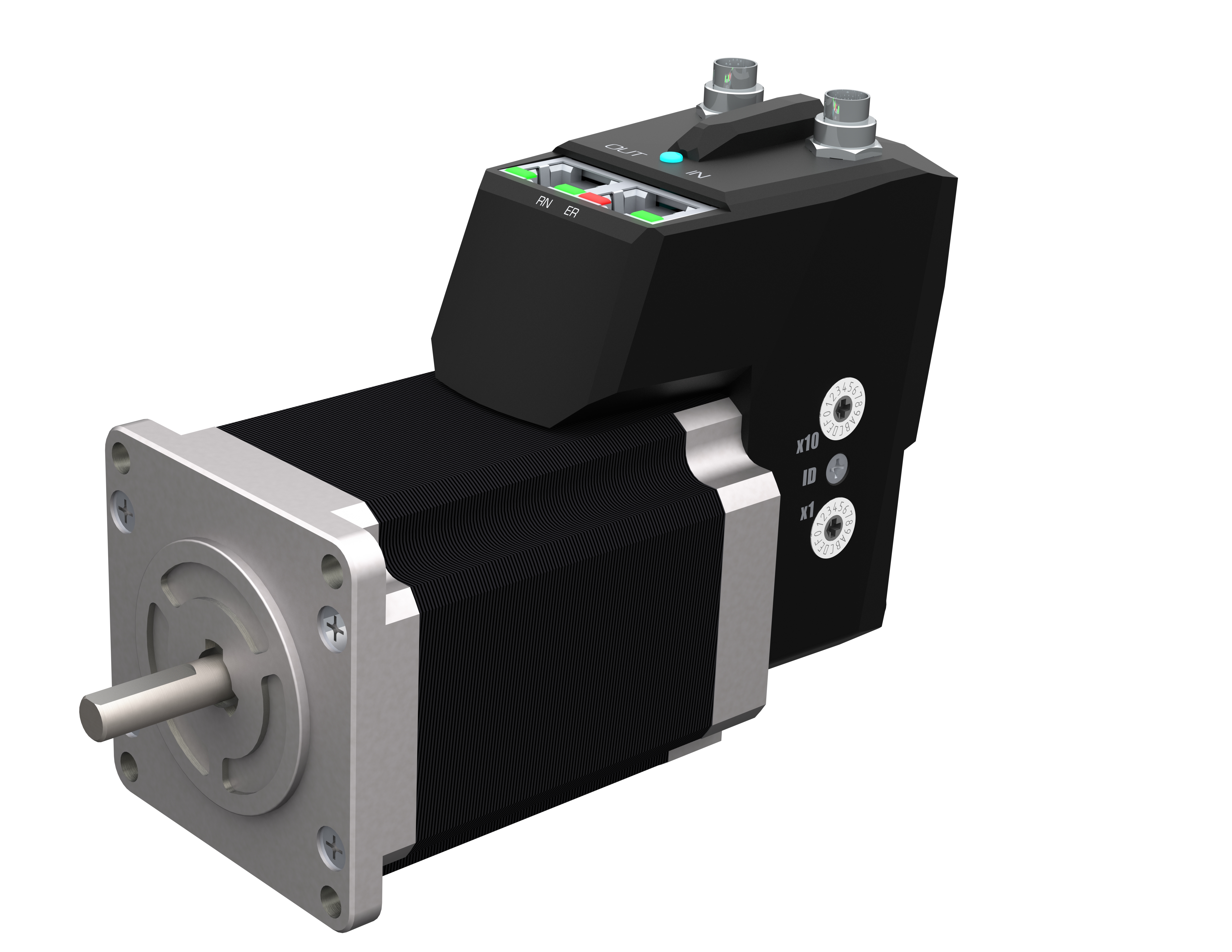

The intelligence and efficiency of the Cool Muscle servos, combined with an EtherCAT interface and separate power for control and drive.
Cool Muscle CM1_E Ethernet servos implement the CiA402 drive profile with CSP, CSV, PV, PP, and HM modes.
USER GUIDE
Use the search bar or links on the left to find the content you are looking for. Alternatively download a copy of the user guide.
PRODUCT BROCHURE
TECHNICAL SPECIFICATIONS
DATASHEETS
CAD FILES
3D Models
PART NUMBERS
Part Number |
|---|
CM1-E-17S30D-RJ-S |
CM1-E-17S30D-RJ-B |
CM1-E-17S30D-8A-S |
CM1-E-17S30D-8A-B |
CM1-E-17L30D-RJ-S |
CM1-E-17L30D-RJ-B |
CM1-E-17L30D-8A-S |
CM1-E-17L30D-8A-B |
CM1-E-23S30D-RJ-S |
CM1-E-23S30D-RJ-B |
CM1-E-23S30D-8A-S |
CM1-E-23S30D-8A-B |
CM1-E-23L30D-RJ-S |
CM1-E-23L30D-RJ-B |
CM1-E-23L30D-8A-S |
CM1-E-23L30D-8A-B |
Part# Indicator | Description |
|---|---|
-RJ | RJ45 Ethernet connector |
-8A | M8A Ethernet connector |
-S | Switch for device ID |
-B | No switch for device ID |
